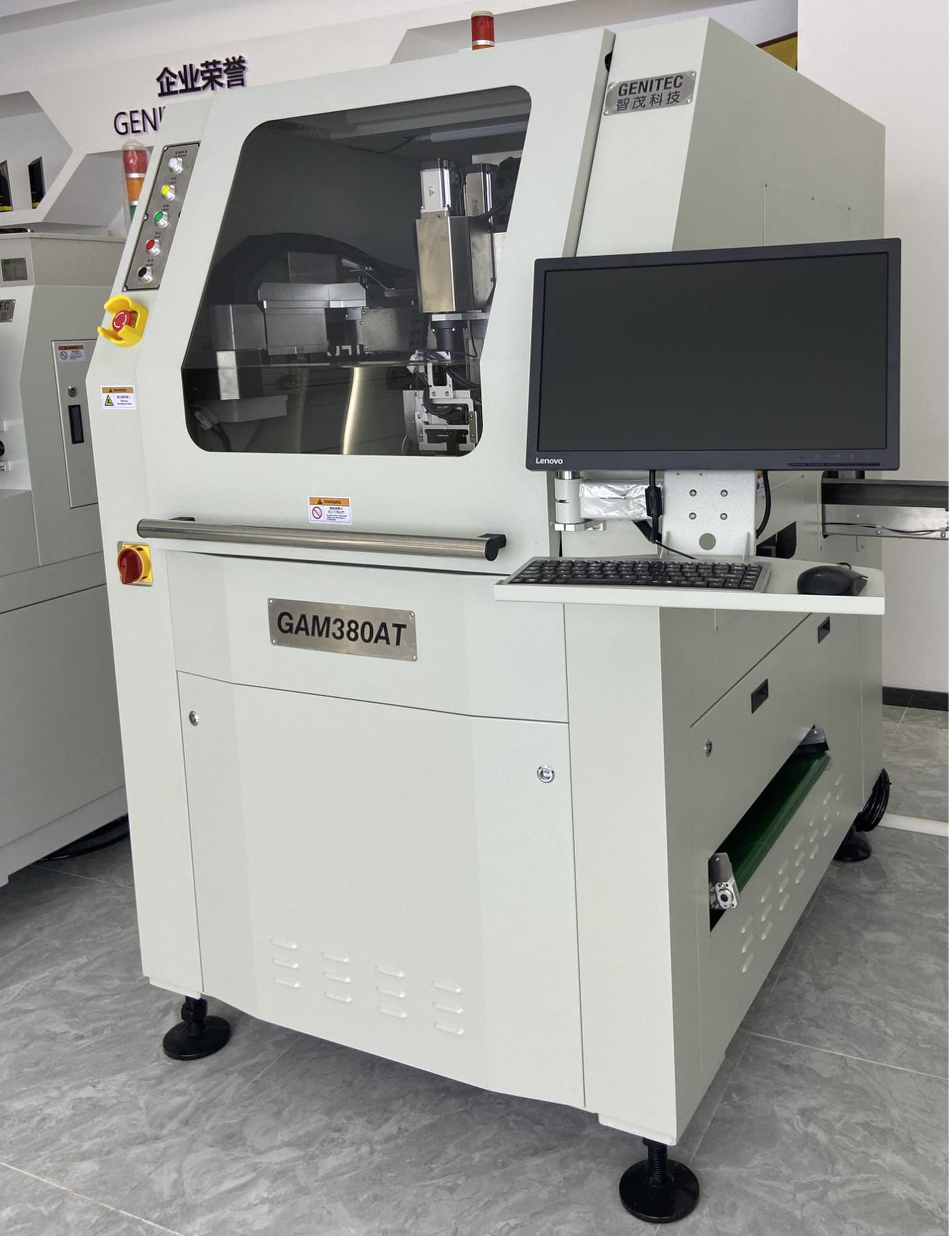

Genitec PCB Cutter Machine In-line Automatic PCB Separator for SMT GAM380AT
PCB Cutter Machine Description:
1. Cutting is without fixture demand.
2. Unloading can be setting between 0-180 degrees on placing in line then connect the equipment behind of it.
3. Loading by track; unloading have 3 options of via conveyor, tracking and fixture.
4. Assemble with high speed ESD spindle for function of auto tool change, spindle can
release the static caused during production, then can reduce the PCB damage possibility caused via static.
5. The management of milling tool life cycle, maintenance reminder, the management/setting of rotating speed of spindle.
6. Assemble with high absorption power of dust collector, contains negative pressure detection
which will remind user to clean the filter bags.
PCB Cutter Machine Application
Suitable to be used on the automotive electronics, less quantity but multiple types PCB routing process.
Optional to choose different fixture which is according to PCB routing demand purpose.
GAM380AT PCB Cutter Machine Optional Items
1. CCD scanning two-dimensional code (conditional, the above scanning code needs to be installed);
2. High-speed barcode camera;
3. Spindle tool diameter test;
4. ESD resistance test of spindle.
PCB Cutter Machine Feartures
| Operation panel | Easy to do the parameter setting of routing function and milling tool/fixture. Show the production efficiency and the using data of milling tool. The history message window can easy to check the operation records. |
| Cutting is without fixture demand | Cutting is without fixture demand. Unloading can be setting between 0-180 degree on placing in line then unloading. |
| Milling tool detection | Provide capacity of detecting broken/dropped/reversed milling tool for auto tool change. Available to select the optional function of diameter detecting of milling tool. |
| Off-line editing for program of routing path via whole board scanning function | Available to load the GERBER and DXF formats which is able to edit the program of routing path outside of off-line PC. The function of scanning the whole PCB allows user to facilitate correcting and editing the cutter routing path rapidly. |
PCB Cutter Machine Specification
| Item | GAM380AT
|
| Valid Cutting Area | 350*350mm |
| Loading Method | Track Delivery |
| Unloading Method | Conveyor Belt or Track Delivery(Optional) |
| Transfer Method | the Rotatable Clamp for Taking |
| Movement Direction | Left to Right Or Right to Left |
| Cutting Function | Tweening to Line,L-shape,U- shape,Circle,Arc |
| Conveying Height | 900±25mm |
| Repeat Precision | ±0.01mm |
| Cutting Precision | ≦±0.05mm |
| Cutting Speed | 1-100mm/s |
| Spindle Speed | MAX.60000rpm |
| Tool Chang Method | Automatic |
| Broken Life Check | Included |
| Operation System | Windows10 |
| Program Teaching Method | Intuitive Teaching by CCD Color Image Input |
| Control Method | Precision Multi-axis Control System |
| XYZ-Axis Driving Mode | AC Servo Motor |
| Size of Millng Bit | ∮0.8~3.0mm |
| Voltage | AC220V,1phase,50/60HZ,4KW |
| Pneumatic Pressure Requirement | 0.6Mpa,160L/min |
| Machine Dimensions (W*D*H) | 1395*1811*1750mm |
| Machine Weight | 750KG |
| Dust Collector | TS300L |
